Everything you need to start DTF. In one machine.
Simple to learn. Easy to run.
Print high-quality DTF Transfers
Upgrade anytime
Up to 19 lm/h (6 sqm/h). Efficiency for boutique shops
Up to 30 lm/h (9,5sqm/h). Scalability for industrial output
Technical Specifications
Printheads
Dual Epson i1600-A1 (Standard) / i3200-A1 (High-Speed)
Max print width
Mini 30: 330 mm (13 in)
Mini 60: 600 mm (24 in)
Ink type
Filmjet Pigment DTF Ink (Oeko-Tex and GOTS Certified). Available in 1Lt bottles.
Ink colors
CMYK + White
Ink supply
Bulk 500ml CMYK ink tanks 1Lt White.,
White ink management
Auto-Recirculation & Agitation, wet capping.
Monitoring
Ink-level, Film-end, Powder-end Sensors
Protection
Anti-crash Carriage & Emergency Stop
Pre-heating
Pre, print and post heaters warm up the film before, during and after printing to help ink drying and print quality.
Control Center

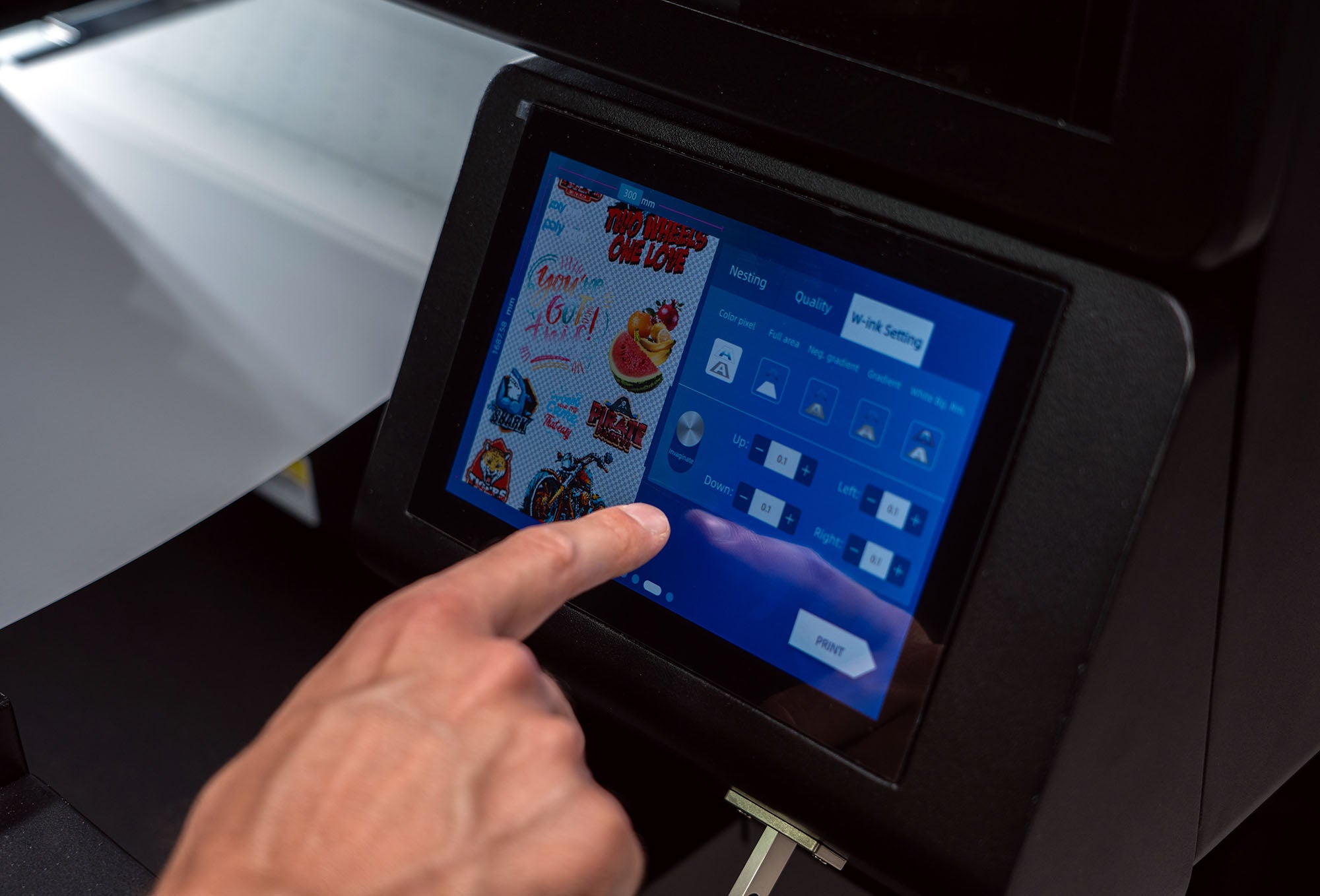

Built-in Mini PC (Internal SSD), Integrated Touchscreen UI
RIP software
Pre-installed RIP. Optional CADlink/Digital Factory, DevStudio, Caldera
Connectivity
Wi-Fi, Ethernet (LAN), USB
Dimensions
Mini 30: 135x105x115 cm, 150kg.
Mini 60: 195x115x115 cm, 210kg
Packaging
Wooden box on pallet.
Mini 30 : 143x102x142 cm
270kg.
Mini 60: 143x134x142 cm, 320kg
Chassis Type
All-in-one unibody. Can split printer/shaker if necessary to fit in tiny places.
Power supply
Mini 30: 230V / 16A (Standard Plug)
Mini 60: 230V / 25A
Operating conditions
Temp: 20-28°C / Humidity: 40-60%
Air Filtration
Included. 5-layer active charcoal air purifier.
Mini 30 | 2x i1600 print heads
Standard mode (Feather 30%) :
720x1800dpi 6 pass 3.35 sqm/h - 10.8 lm/h
Speed mode (Feather 0%)
720x1200dpi 4 pass 5.97 sqm/h - 19.26 lm/h
Quality mode (Feather 30%)
720x2400dpi 8 pass 2.54 sqm/h - 8.17 lm/h
Mini 30 | 2x i3200 print heads
Standard mode (Feather 30%) :
720x1800dpi 6 pass 5.66 sqm/h - 18.3 lm/h
Speed mode (Feather 0%)
720x1200dpi 4 pass 9.54 sqm/h - 30.8 lm/h
Quality mode (Feather 30%)
720x2400dpi 8 pass 4.50 sqm/h - 14.5 lm/h
Specifications are based on factory-tested production modes. Performance may vary based on environmental conditions and RIP settings.
Mini 60 | 2x i1600 print heads
Standard mode (Feather 30%) :
720x1800dpi 6 pass / 4.56 sqm/h - 7.86 lm/h
Speed mode (Feather 0%)
720x1200dpi 4 pass / 8.19 sqm/h - 14.12 lm/h
Quality mode (Feather 30%)
720x2400dpi 8 pass / 3.43 sqm/h - 5.91 lm/h
Mini 60 | 2x i3200 print heads
Standard mode (Feather 30%) :
720x1800dpi 6 pass / 7.91 sqm/h - 13.6 lm/h
Speed mode (Feather 0%)
720x1200dpi 4 pass / 13.83 sqm/h - 23.80 lm/h
Quality mode (Feather 30%)
720x2400dpi 8 pass / 6.14 sqm/h - 10.6 lm/h
Specifications are based on factory-tested production modes. Performance may vary based on environmental conditions and RIP settings.
Built with manufacturing experience.
EU Assembly + QC
Final assembly, calibration, and quality control by Polyprint.
Warranty + training
1-year warranty. Training in-house, remote or on-site.
Support that responds
Remote support plus on-site help when needed. Fast response culture.
