One platform. Multiple powderless technologies. Zero powder. Filmjet Powderless is Polyprint's dedicated 60 cm platform for next-generation powder-free DTF production. Its flexible 3-head architecture is designed to support different validated powderless ink technologies, giving garment decorators a cleaner, simpler alternative to conventional powder-based DTF.
A much softer result than standard powder-based DTF, making it more suitable for premium garments and demanding applications.
Eliminating traditional DTF powder, removes the powder application and shaking stages from the workflow, helping create a cleaner production environment with less powder handling and less equipment to manage.
Without powder particle limitations, the system can achieve smoother tonal transitions and more refined image details.
Filmjet Powderless is more than a conventional DTF printer without a shaker. The printer, ink delivery, drying process and operating parameters are developed together to support dedicated powder-free DTF technologies.
Removing conventional adhesive powder opens new possibilities for DTF applications where hand feel and fine image reproduction matter. Filmjet Powderless is being developed to deliver softer transfers, smoother fade-outs and finer tonal transitions, making powder-free DTF especially interesting for fashion, premium apparel and other applications where the final result on the garment matters as much as the print itself.
Powder-free DTF can be achieved through different ink and adhesive technologies. Filmjet Powderless has been developed as a flexible 3-head platform capable of supporting different powderless approaches validated by Polyprint. This gives Polyprint the freedom to continuously evaluate new chemistry, configurations and processes as powderless DTF technology evolves.
Color, white and the functional powderless layers are digitally printed onto the transfer film.
No conventional DTF adhesive powder application or powder shaking stage is required.
The printed film passes through the dedicated Filmjet Powderless dryer.
Transfer the finished design onto the garment using the recommended application settings.

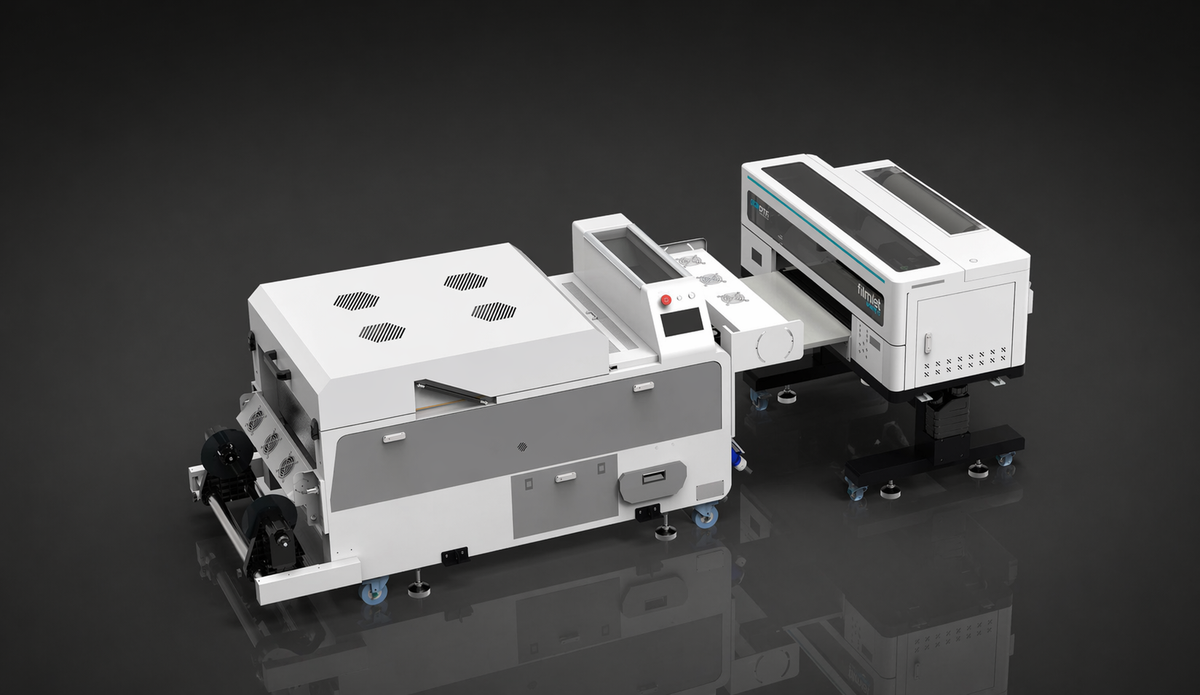

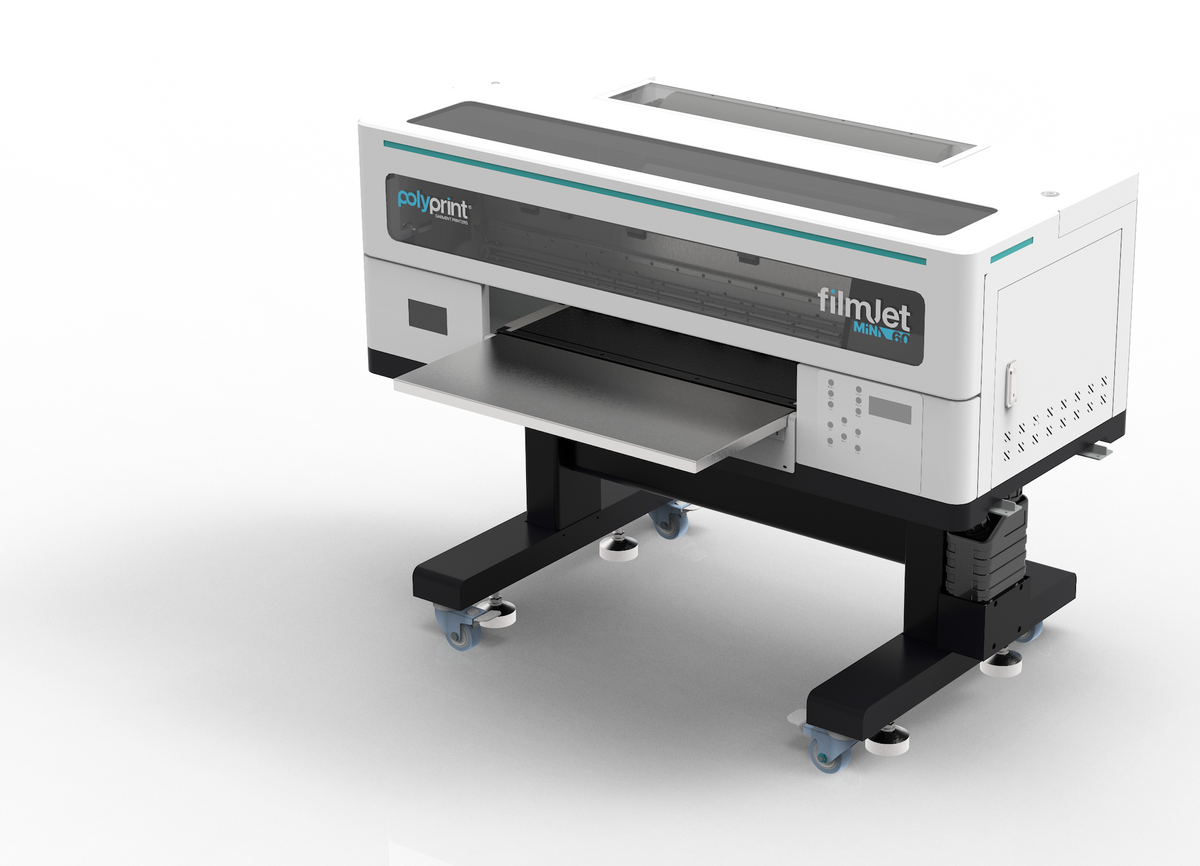

At the core of Filmjet Powderless is a dedicated 60 cm, 3-head printing platform developed specifically for powder-free DTF production. Three printheads are arranged inline, allowing the system to support different validated powderless ink architectures. Depending on the selected technology configuration, the three channels can operate as: CMYK + White + Adhesive or CMYK + White 1 + White 2. This flexible architecture allows Filmjet Powderless to evolve together with powder-free ink technology rather than being limited to a single chemistry or supplier.

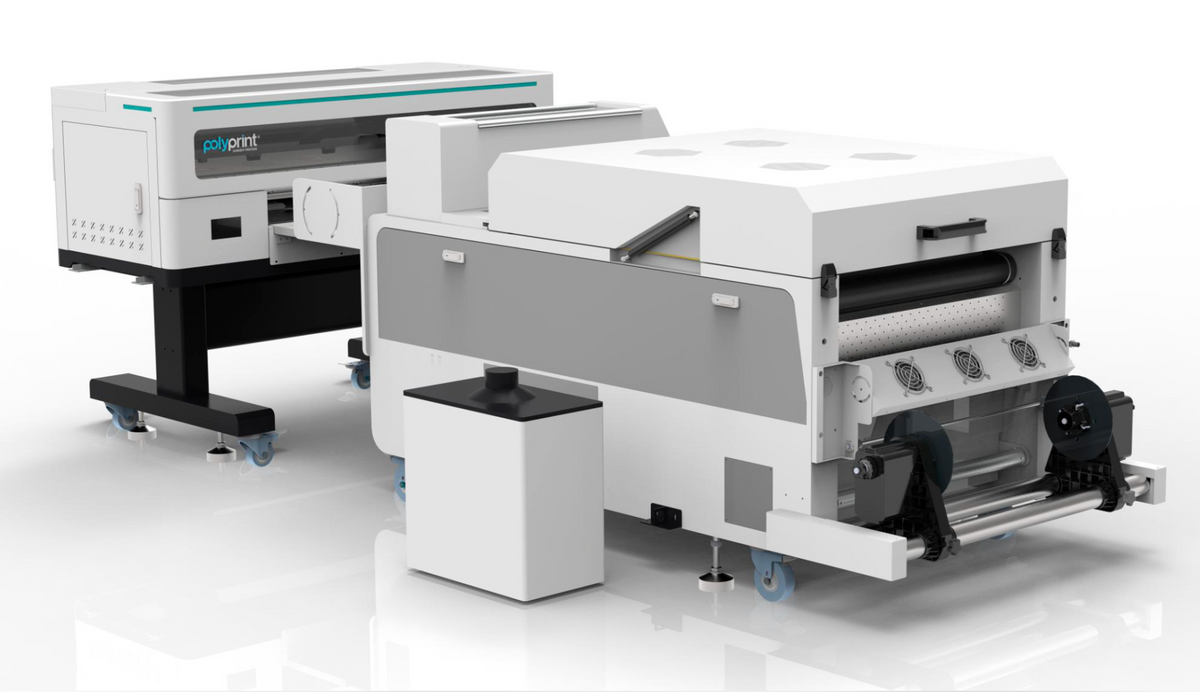

Powderless DTF requires a different approach to drying than conventional powder-based DTF. Filmjet Powderless therefore includes a dedicated dryer designed to work as part of the complete platform. Drying parameters can be optimized according to the selected Powderless Technology Configuration, supporting the different requirements of validated ink and adhesive technologies.The printer and dryer operate as one integrated powderless workflow rather than as separate components.
3 X Epson i1600 or
3 X Epson i3200
Inline configuration
600 mm (24 in)
Validated Powderless Technology Configurations
Configuration dependent:
CMYK + White + Adhesive
or
CMYK + White 1 + White 2
Bulk 1000ml ink tanks
Auto-Recirculation & Agitation, wet capping.
Ink-level, Film-end Sensors
Anti-crash Carriage & Emergency Stop
Pre, print and post heaters provide controlled film heating before, during and after printing according to the requirements of the selected Powderless Technology Configuration.
Ethernet (LAN), USB
Printer: 170x89x120 cm (LxWxH), 150kg.
Dryer: 216x97x100 cm (LxWxH), 210kg
Temp: 20-28°C / Humidity: 40-60%
720x1800dpi 6 pass / 4.56 sqm/h - 7.86 lm/h
720x1200dpi 4 pass / 8.19 sqm/h - 14.12 lm/h
720x2400dpi 8 pass / 3.43 sqm/h - 5.91 lm/h
720x1800dpi 6 pass / 7.91 sqm/h - 13.6 lm/h
720x1200dpi 4 pass / 13.83 sqm/h - 23.80 lm/h
720x2400dpi 8 pass / 6.14 sqm/h - 10.6 lm/h
Production speeds depend on printhead configuration, Powderless Technology Configuration, print mode and application requirements.
Following extensive internal development, Polyprint is taking the next Filmjet Powderless configuration into selected real-world production environments. The Beta Partner Program brings together experienced DTF professionals and Polyprint's development team to validate the technology under everyday production conditions. Beta partners will help us evaluate production reliability, printhead performance, ink consumption, wash durability, different garment applications and long-term workflow performance. Participation is limited to selected professional DTF users and authorized Polyprint dealers. Interested in becoming a Filmjet Powderless Beta Partner?
